Technical details of infrared panels - calorific values and performance parameters.

Approximate calorific value table

(The exact heating panel performance depends on building materials and the building's heat loss)

Building	ESX 200	ESX 400	ESX 400S	ESX 600	ESX 800	ESX 1000	ESX 12000
Passive	25 m3	53 m3	53 m3	80 m3	105 m3	133 m3	160 m3
Low-energy	13 m3	26 m3	26 m3	40 m3	53 m3	66 m3	80 m3
Well insulated	10 m3	20 m3	20 m3	30 m3	43 m3	53 m3	63 m3
Poorly insulated	6 m3	12 m3	12 m3	19 m3	25 m3	31 m3	38 m3

Infrared heating panel color sampler according to the RAL color chart

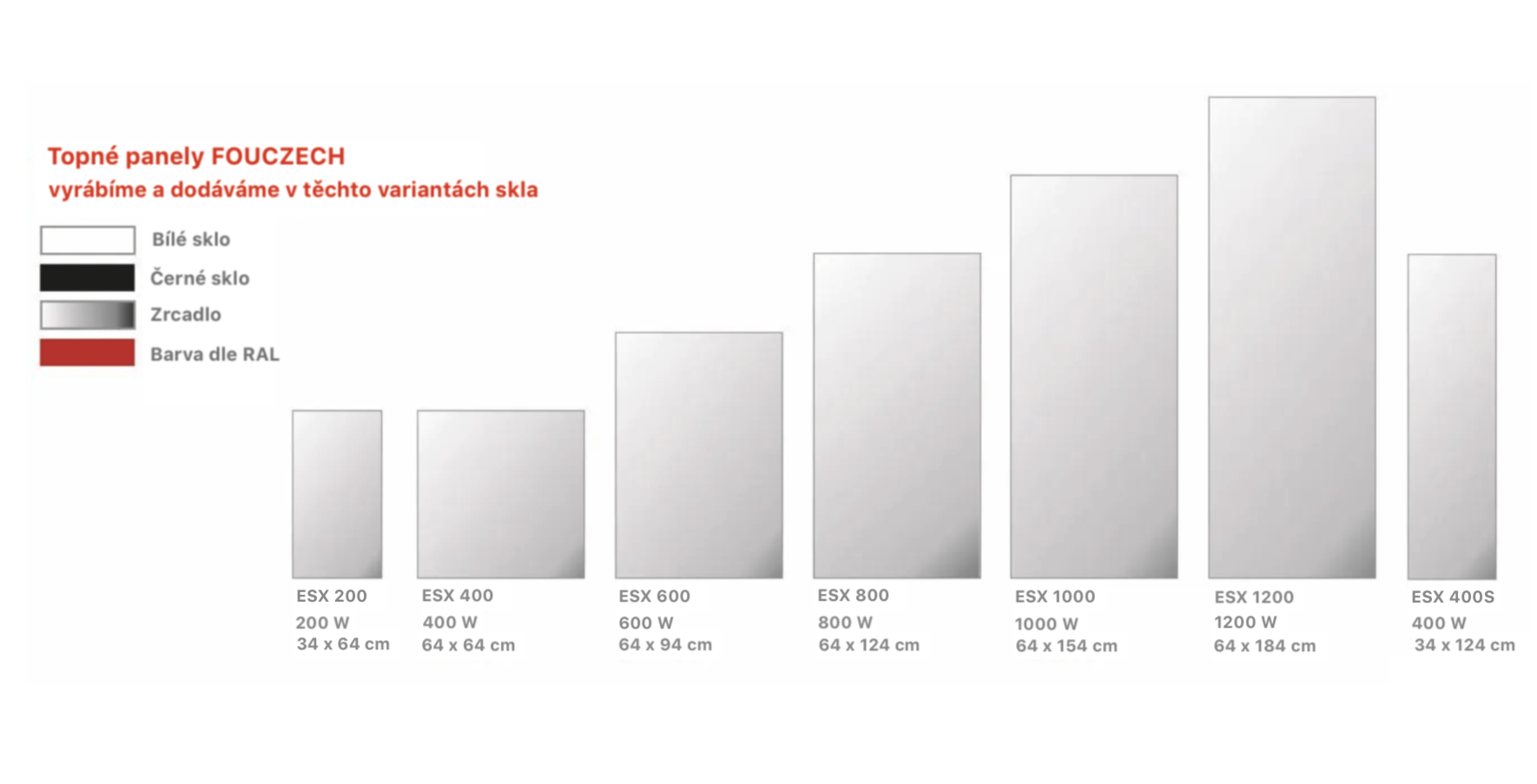

Comparison of panel size

Technical parameters of individual heating panels

Type	Placement	Dimensions in mm			Weight	Number of brackets	Supply voltage	Starting current	Starting power	Operating power
Type	Placement	Length	Width	Depth	Weight	Number of brackets	Supply voltage	Starting current	Starting power	Operating power
Infrapanel ESX 200ESX 200	wall/ceiling	640	340	25/27	4,5/5,6 kg	4	230 V/ 50 Hz	0,98 A	225 W	200 W
ESX 400	wall/ceiling	640	640	25/27	8,5/10,6 kg	4	230 V/ 50 Hz	1,96 A	450 W	400 W
ESX 400 S	wall/ceiling	1240	340	25/27	8,5/10,6 kg	6	230 V/ 50 Hz	1,96 A	450 W	400 W
ESX 600	wall/ceiling	940	640	25	13 kg	4	230 V/ 50 Hz	2,93 A	675 W	600 W
ESX 800	wall/ceiling	1240	640	25	17 kg	6	230 V/ 50 Hz	3,91 A	900 W	800 W
ESX 1000	wall/ceiling	1540	640	25	21,5 kg	6	230 V/ 50 Hz	4,89 A	1125 W	1000 W
ESX 1200	wall/ceiling	1840	640	25	25,5 kg	6	230 V/ 50 Hz	5,87 A	1350 W	1200 W

Infrared heating panel catalog for viewing and download in PDF (10 MB)
